XLNT Automation

RG Series

RGH45HA

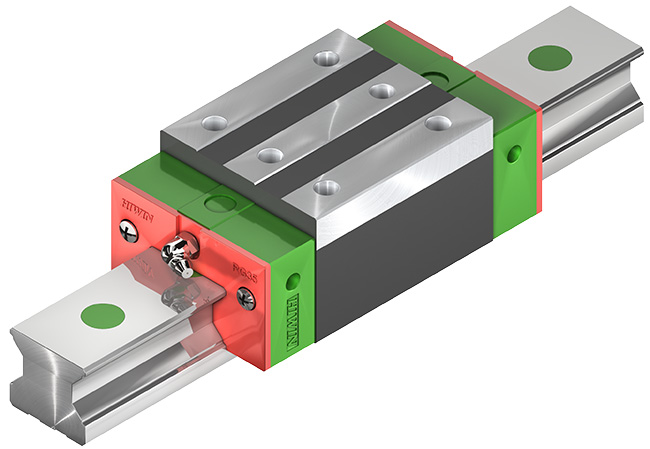

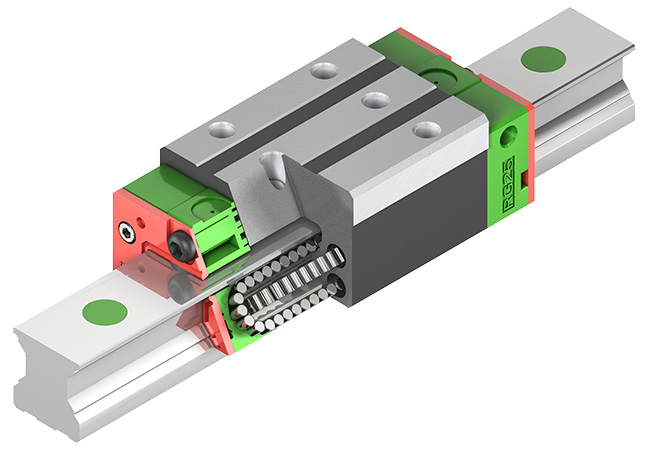

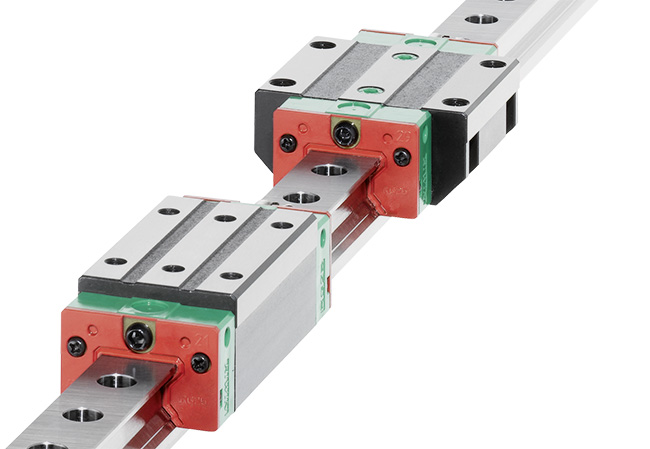

RG Series (Roller Long Block, Regular Width) – RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. RG series is designed with a 45-degree angle of Contact.

RG Series (Roller Long Block, Regular Width) – RG series features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. RG series is designed with a 45-degree angle of Contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions. RG series has the high performance that provides high-precision manufacturing and achieves longer service life.

Details

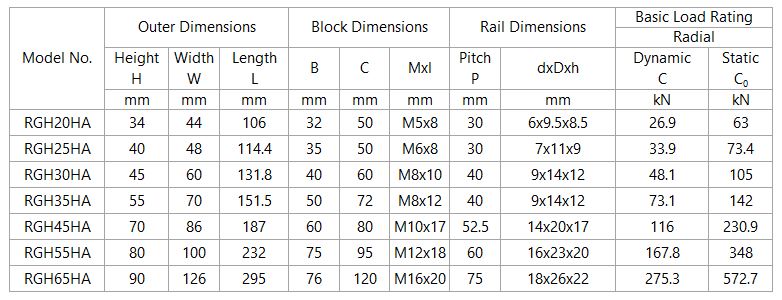

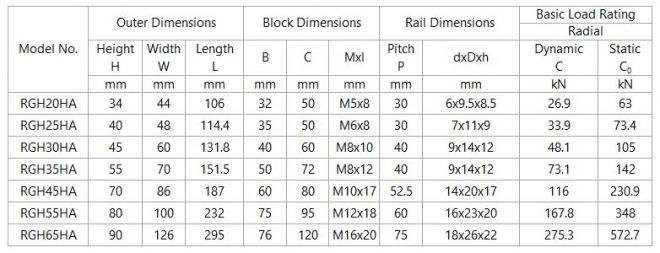

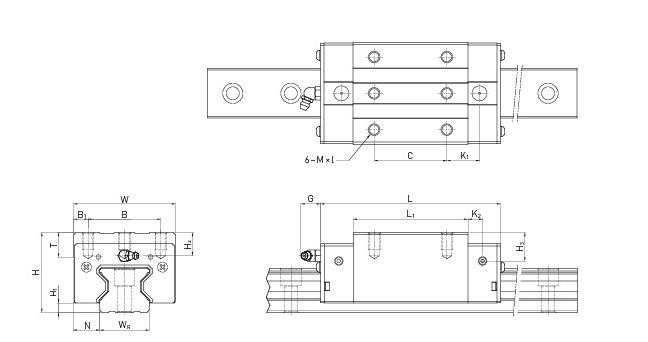

Block Dimensions

60mm X 80mm

Outer Dimensions

70 X 86 X 187
